GitHub Actions CI/CD配置詳解

概述與背景

GitHub Actions是GitHub提供的原生CI/CD平台，讓你能夠直接在代碼倉庫中自動化構建、測試和部署流程。無需第三方服務，只需編寫YAML配置文件即可實現完整的DevOps流水線。

graph TB
    subgraph GitHub Actions架構
        A[代碼推送] --> B[GitHub倉庫]
        B --> C{觸發事件?}

        C -->|push| D[CI工作流]
        C -->|pull_request| E[PR檢查]
        C -->|schedule| F[定時任務]
        C -->|release| G[發布流程]

        D --> H[構建作業]
        E --> H
        F --> H
        G --> I[部署作業]

        H --> J[測試報告]
        I --> K[生產環境]
    end

    style A fill:#fff9c4
    style C fill:#e1f5fe
    style H fill:#c8e6c9
    style I fill:#f3e5f5
    style K fill:#ffcdd2

graph LR
    subgraph CI/CD平台對比
        A[GitHub Actions] --> A1[原生集成]
        A --> A2[2000分鐘/月免費]
        A --> A3[Marketplace豐富]

        B[Jenkins] --> B1[需自建服務器]
        B --> B2[免費自建]
        B --> B3[插件生態豐富]

        C[GitLab CI] --> C1[GitLab集成]
        C --> C2[400分鐘/月免費]
        C --> C3[中等生態]
    end

    style A fill:#c8e6c9
    style B fill:#fff9c4
    style C fill:#fff3e0

為什麼選擇GitHub Actions？

對比維度	GitHub Actions	Jenkins	GitLab CI	CircleCI
配置難度	簡單（YAML）	複雜（Groovy）	中等	中等
服務器管理	無需管理	需自建	需自建	無需
生態系統	豐富（Marketplace）	豐富	中等	較少
與GitHub集成	原生	需配置	需配置	需配置
免費額度	2000分鐘/月	免費自建	400分鐘/月	6000分鐘/月
Docker支持	✅ 原生	✅	✅	✅

核心優勢

原生集成：無需額外配置，直接在倉庫中編寫
豐富生態：Marketplace有數千個現成Action
矩陣構建：輕鬆測試多版本、多平台
容器支持：原生Docker和Kubernetes支持
安全可靠：Secrets加密存儲，審計日誌完整

核心概念

架構層級

Workflow（工作流）
├── Event（觸發事件）
├── Job 1（作業1）
│   ├── Step 1（步驟1）
│   │   └── Action（操作）
│   ├── Step 2
│   └── Step 3
└── Job 2（作業2）
    ├── Step 1
    └── Step 2

基本術語詳解

Workflow（工作流）：

自動化的完整流程
定義在 .github/workflows/*.yml 文件中
一個倉庫可以有多個工作流
每個工作流獨立運行

Event（事件）：

觸發工作流運行的條件
常見事件：
- push：代碼推送
- pull_request：PR創建/更新
- schedule：定時執行（cron）
- workflow_dispatch：手動觸發
- release：發布事件
- issues：Issue事件

Job（作業）：

工作流中的一組步驟
默認並行執行
可以定義依賴關係（needs）
運行在獨立的虛擬機上

Step（步驟）：

Job中的單個任務
可以執行命令或使用Action
按順序執行
共享同一個文件系統

Action（操作）：

可復用的單元
三種類型：
- JavaScript Action
- Docker Action
- Composite Action
可以來自Marketplace或自定義

工作流文件結構

.github/
└── workflows/
    ├── ci.yml              # 持續集成
    ├── cd.yml              # 持續部署
    ├── release.yml         # 發布流程
    ├── security.yml        # 安全掃描
    └── dependency-update.yml # 依賴更新

實戰步驟

GitHub Actions界面預覽

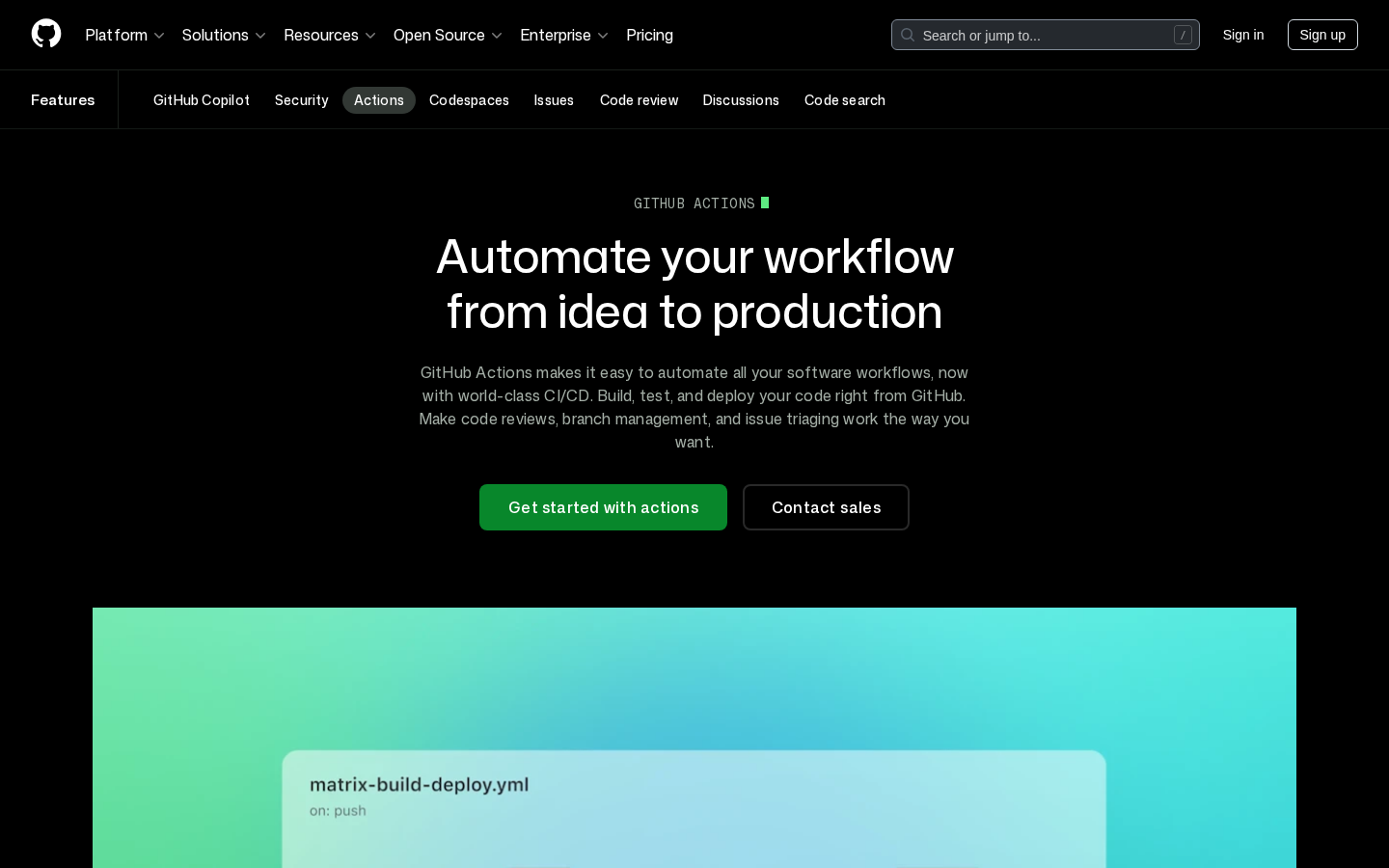

GitHub Actions功能頁

GitHub Actions功能介紹頁面，展示自動化能力

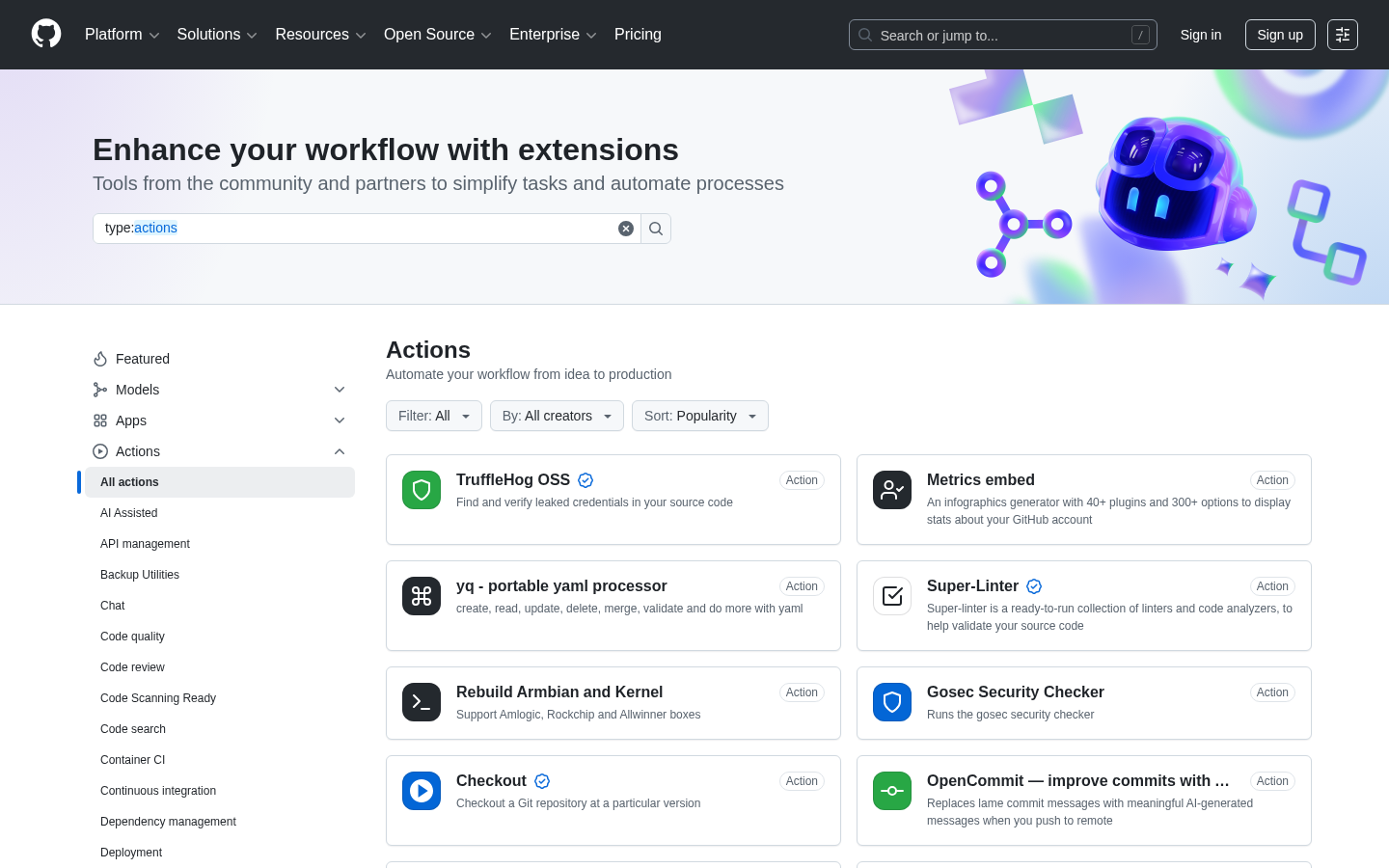

Actions Marketplace

Actions Marketplace提供數千個可直接使用的Action

第一步：創建基礎CI工作流

.github/workflows/ci.yml：

name: CI Pipeline

# 觸發條件
on:
  push:
    branches: [main, develop]
  pull_request:
    branches: [main]

jobs:
  # ==================== 代碼檢查 ====================
  lint:
    name: 代碼檢查
    runs-on: ubuntu-latest

    steps:
      - name: 檢出代碼
        uses: actions/checkout@v4

      - name: 設置Node.js
        uses: actions/setup-node@v4
        with:
          node-version: '20'
          cache: 'npm'

      - name: 安裝依賴
        run: npm ci

      - name: 運行ESLint
        run: npm run lint

      - name: 運行Prettier
        run: npm run format:check

  # ==================== 類型檢查 ====================
  type-check:
    name: TypeScript類型檢查
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - uses: actions/setup-node@v4
        with:
          node-version: '20'
          cache: 'npm'

      - run: npm ci
      - run: npm run type-check

  # ==================== 單元測試 ====================
  test:
    name: 單元測試
    runs-on: ubuntu-latest

    strategy:
      matrix:
        node-version: [18.x, 20.x, 22.x]

    steps:
      - uses: actions/checkout@v4

      - name: 設置Node.js ${{ matrix.node-version }}
        uses: actions/setup-node@v4
        with:
          node-version: ${{ matrix.node-version }}
          cache: 'npm'

      - name: 安裝依賴
        run: npm ci

      - name: 運行測試
        run: npm test -- --coverage

      - name: 上傳覆蓋率報告
        uses: codecov/codecov-action@v4
        with:
          token: ${{ secrets.CODECOV_TOKEN }}
          files: ./coverage/lcov.info

  # ==================== 構建 ====================
  build:
    name: 構建項目
    runs-on: ubuntu-latest
    needs: [lint, type-check, test]

    steps:
      - uses: actions/checkout@v4

      - uses: actions/setup-node@v4
        with:
          node-version: '20'
          cache: 'npm'

      - run: npm ci
      - run: npm run build

      - name: 上傳構建產物
        uses: actions/upload-artifact@v4
        with:
          name: build-output
          path: dist/
          retention-days: 7

第二步：代碼質量檢查

.github/workflows/quality.yml：

name: Code Quality

on: [push, pull_request]

jobs:
  # ==================== ESLint檢查 ====================
  eslint:
    name: ESLint
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - uses: actions/setup-node@v4
        with:
          node-version: '20'
          cache: 'npm'

      - run: npm ci
      - run: npm run lint

      - name: ESLint報告
        uses: reviewdog/action-eslint@v1
        if: github.event_name == 'pull_request'
        with:
          reporter: github-pr-review
          github_token: ${{ secrets.GITHUB_TOKEN }}

  # ==================== 安全掃描 ====================
  security:
    name: 安全掃描
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - name: 運行npm audit
        run: npm audit --audit-level=high
        continue-on-error: true

      - name: Snyk安全掃描
        uses: snyk/actions/node@master
        continue-on-error: true
        env:
          SNYK_TOKEN: ${{ secrets.SNYK_TOKEN }}

  # ==================== 代碼複雜度 ====================
  complexity:
    name: 代碼複雜度分析
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - name: SonarCloud掃描
        uses: sonarsource/sonarcloud-github-action@master
        env:
          GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}
          SONAR_TOKEN: ${{ secrets.SONAR_TOKEN }}

第三步：完整CI/CD流水線

.github/workflows/deploy.yml：

name: CI/CD Pipeline

on:
  push:
    branches: [main]
  pull_request:
    branches: [main]
  workflow_dispatch:
    inputs:
      environment:
        description: 'Deployment environment'
        required: true
        default: 'staging'
        type: choice
        options:
          - staging
          - production

env:
  REGISTRY: ghcr.io
  IMAGE_NAME: ${{ github.repository }}

jobs:
  # ==================== 測試階段 ====================
  test:
    name: 測試
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - uses: actions/setup-node@v4
        with:
          node-version: '20'
          cache: 'npm'

      - run: npm ci
      - run: npm test
      - run: npm run build

  # ==================== Docker構建 ====================
  build:
    name: 構建Docker鏡像
    runs-on: ubuntu-latest
    needs: test
    if: github.event_name == 'push'

    outputs:
      image-tag: ${{ steps.meta.outputs.tags }}
      image-digest: ${{ steps.build.outputs.digest }}

    permissions:
      contents: read
      packages: write

    steps:
      - name: 檢出代碼
        uses: actions/checkout@v4

      - name: 登錄GitHub Container Registry
        uses: docker/login-action@v3
        with:
          registry: ${{ env.REGISTRY }}
          username: ${{ github.actor }}
          password: ${{ secrets.GITHUB_TOKEN }}

      - name: 設置Docker Buildx
        uses: docker/setup-buildx-action@v3

      - name: 提取Docker元數據
        id: meta
        uses: docker/metadata-action@v5
        with:
          images: ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}
          tags: |
            type=ref,event=branch
            type=ref,event=pr
            type=semver,pattern={{version}}
            type=sha,prefix=
            type=raw,value=latest,enable={{is_default_branch}}

      - name: 構建並推送Docker鏡像
        id: build
        uses: docker/build-push-action@v5
        with:
          context: .
          push: true
          tags: ${{ steps.meta.outputs.tags }}
          labels: ${{ steps.meta.outputs.labels }}
          cache-from: type=gha
          cache-to: type=gha,mode=max
          platforms: linux/amd64,linux/arm64

      - name: 生成SBOM
        uses: anchore/sbom-action@v0
        with:
          image: ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}:${{ github.sha }}
          format: spdx-json
          output-file: sbom.spdx.json

      - name: 上傳SBOM
        uses: actions/upload-artifact@v4
        with:
          name: sbom
          path: sbom.spdx.json

  # ==================== 部署到Staging ====================
  deploy-staging:
    name: 部署到Staging
    runs-on: ubuntu-latest
    needs: build
    if: github.ref == 'refs/heads/main' && github.event_name == 'push'

    environment:
      name: staging
      url: https://staging.example.com

    steps:
      - name: 部署到Staging服務器
        uses: appleboy/ssh-action@v1
        with:
          host: ${{ secrets.STAGING_HOST }}
          username: ${{ secrets.DEPLOY_USER }}
          key: ${{ secrets.DEPLOY_KEY }}
          script: |
            docker login ${{ env.REGISTRY }} -u ${{ github.actor }} -p ${{ secrets.GITHUB_TOKEN }}
            docker pull ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}:latest
            docker compose -f /opt/app/docker-compose.staging.yml up -d
            docker image prune -f

      - name: 健康檢查
        run: |
          curl -f https://staging.example.com/health || exit 1

      - name: 通知團隊
        uses: slackapi/slack-github-action@v1
        with:
          payload: |
            {
              "text": "🚀 Staging部署完成",
              "blocks": [
                {
                  "type": "section",
                  "text": {
                    "type": "mrkdwn",
                    "text": "*部署詳情*\n• 環境: Staging\n• 版本: ${{ github.sha }}\n• 觸發者: ${{ github.actor }}"
                  }
                }
              ]
            }
        env:
          SLACK_WEBHOOK_URL: ${{ secrets.SLACK_WEBHOOK }}

  # ==================== 部署到Production ====================
  deploy-production:
    name: 部署到Production
    runs-on: ubuntu-latest
    needs: build
    if: github.event.inputs.environment == 'production'

    environment:
      name: production
      url: https://example.com

    steps:
      - name: 部署到Production服務器
        uses: appleboy/ssh-action@v1
        with:
          host: ${{ secrets.PRODUCTION_HOST }}
          username: ${{ secrets.DEPLOY_USER }}
          key: ${{ secrets.DEPLOY_KEY }}
          script: |
            # 備份當前版本
            docker tag ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}:latest ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}:backup-$(date +%Y%m%d-%H%M%S)

            # 拉取新版本
            docker login ${{ env.REGISTRY }} -u ${{ github.actor }} -p ${{ secrets.GITHUB_TOKEN }}
            docker pull ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}:latest

            # 滾動更新
            docker compose -f /opt/app/docker-compose.prod.yml up -d --no-deps --build app

            # 等待健康檢查
            sleep 30

            # 清理舊鏡像
            docker image prune -f

      - name: 驗證部署
        run: |
          for i in {1..10}; do
            if curl -f https://example.com/health; then
              echo "部署成功！"
              exit 0
            fi
            echo "等待服務就緒... ($i/10)"
            sleep 10
          done
          echo "部署驗證失敗"
          exit 1

      - name: 生產環境通知
        uses: slackapi/slack-github-action@v1
        with:
          payload: |
            {
              "text": "🎉 Production部署成功",
              "attachments": [
                {
                  "color": "good",
                  "fields": [
                    {"title": "環境", "value": "Production", "short": true},
                    {"title": "版本", "value": "${{ github.sha }}", "short": true},
                    {"title": "觸發者", "value": "${{ github.actor }}", "short": true},
                    {"title": "時間", "value": "${{ github.event.head_commit.timestamp }}", "short": true}
                  ]
                }
              ]
            }
        env:
          SLACK_WEBHOOK_URL: ${{ secrets.SLACK_WEBHOOK }}

第四步：環境變量與Secrets管理

4.1 配置Secrets

GitHub設置路徑：

倉庫 → Settings → Secrets and variables → Actions → New repository secret

常用Secrets清單：

Secret名稱	用途	示例值
`DEPLOY_KEY`	SSH部署私鑰	`-----BEGIN OPENSSH PRIVATE KEY-----...`
`DEPLOY_HOST`	部署服務器地址	`deploy.example.com`
`DEPLOY_USER`	SSH用戶名	`deploy`
`DATABASE_URL`	數據庫連接	`postgresql://user:pass@host:5432/db`
`API_KEY`	API密鑰	`sk-xxx...`
`SNYK_TOKEN`	Snyk安全掃描	`xxx-xxx-xxx`
`CODECOV_TOKEN`	Codecov覆蓋率	`xxx-xxx-xxx`
`SLACK_WEBHOOK`	Slack通知	`https://hooks.slack.com/...`

4.2 環境保護規則

jobs:
  deploy-production:
    runs-on: ubuntu-latest

    # 關聯環境（需要批准才能執行）
    environment:
      name: production
      url: https://example.com

    steps:
      - run: echo "Deploying to production"

環境保護規則配置（在GitHub設置）：

必需審查者（Required reviewers）
等待時間（Wait timer）
部署分支限制（Deployment branches）

4.3 在工作流中使用

jobs:
  deploy:
    runs-on: ubuntu-latest

    steps:
      - name: 部署應用
        env:
          # 直接使用secrets
          DATABASE_URL: ${{ secrets.DATABASE_URL }}
          API_KEY: ${{ secrets.API_KEY }}

          # 組合secrets
          DATABASE_HOST: ${{ secrets.DB_HOST }}
          DATABASE_PORT: ${{ secrets.DB_PORT }}

        run: |
          echo "Deploying with environment variables..."
          npm run deploy

第五步：矩陣構建

5.1 多版本測試

jobs:
  test:
    runs-on: ${{ matrix.os }}

    strategy:
      # 失敗時是否取消其他矩陣作業
      fail-fast: false

      matrix:
        # 操作系統矩陣
        os: [ubuntu-latest, macos-latest, windows-latest]

        # Node.js版本矩陣
        node: [18, 20, 22]

        # 排除特定組合
        exclude:
          - os: macos-latest
            node: 18
          - os: windows-latest
            node: 22

        # 添加額外配置
        include:
          - os: ubuntu-latest
            node: 20
            experimental: true
            coverage: true

    steps:
      - uses: actions/checkout@v4

      - name: 設置Node.js ${{ matrix.node }}
        uses: actions/setup-node@v4
        with:
          node-version: ${{ matrix.node }}
          cache: 'npm'

      - run: npm ci
      - run: npm test

      - name: 上傳覆蓋率
        if: matrix.coverage
        uses: codecov/codecov-action@v4

5.2 多服務矩陣

jobs:
  integration-test:
    runs-on: ubuntu-latest

    strategy:
      matrix:
        database:
          - image: postgres:14
            port: 5432
          - image: postgres:15
            port: 5432
          - image: mysql:8
            port: 3306

        redis:
          - image: redis:6
            port: 6379
          - image: redis:7
            port: 6379

    services:
      db:
        image: ${{ matrix.database.image }}
        ports:
          - ${{ matrix.database.port }}:${{ matrix.database.port }}
        env:
          POSTGRES_PASSWORD: testpass
        options: >-
          --health-cmd pg_isready
          --health-interval 10s
          --health-timeout 5s
          --health-retries 5

      redis:
        image: ${{ matrix.redis.image }}
        ports:
          - ${{ matrix.redis.port }}:${{ matrix.redis.port }}
        options: >-
          --health-cmd "redis-cli ping"
          --health-interval 10s
          --health-timeout 5s
          --health-retries 5

    steps:
      - uses: actions/checkout@v4
      - run: npm ci
      - run: npm run test:integration

第六步：緩存優化

6.1 npm緩存

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      # 方式1：使用setup-node內置緩存
      - uses: actions/setup-node@v4
        with:
          node-version: '20'
          cache: 'npm'  # 自動緩存

      # 方式2：手動配置緩存
      - name: 緩存node_modules
        uses: actions/cache@v4
        with:
          path: |
            ~/.npm
            node_modules
          key: ${{ runner.os }}-node-${{ hashFiles('**/package-lock.json') }}
          restore-keys: |
            ${{ runner.os }}-node-

6.2 Docker層緩存

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - name: 設置Docker Buildx
        uses: docker/setup-buildx-action@v3

      - name: 構建鏡像（帶緩存）
        uses: docker/build-push-action@v5
        with:
          context: .
          push: false
          cache-from: type=gha
          cache-to: type=gha,mode=max

6.3 多種緩存組合

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - name: 緩存多個路徑
        uses: actions/cache@v4
        with:
          path: |
            ~/.npm
            ~/.cache
            node_modules
            .next/cache
          key: ${{ runner.os }}-cache-${{ hashFiles('**/package-lock.json', '**/yarn.lock') }}
          restore-keys: |
            ${{ runner.os }}-cache-

第七步：條件執行

7.1 分支條件

jobs:
  deploy:
    runs-on: ubuntu-latest

    # 僅在main分支執行
    if: github.ref == 'refs/heads/main'

    steps:
      - run: echo "Deploying..."

7.2 事件條件

jobs:
  release:
    runs-on: ubuntu-latest

    # 僅在發布時執行
    if: startsWith(github.ref, 'refs/tags/')

    steps:
      - name: 發布到npm
        if: github.event_name == 'release'
        run: npm publish

7.3 文件變更條件

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4
        with:
          fetch-depth: 2

      - name: 檢查文件變更
        id: check
        run: |
          # 獲取變更的文件
          changed_files=$(git diff --name-only HEAD^ HEAD)

          # 檢查是否有src目錄變更
          if echo "$changed_files" | grep -q "^src/"; then
            echo "src_changed=true" >> $GITHUB_OUTPUT
          fi

      - name: 構建前端
        if: steps.check.outputs.src_changed == 'true'
        run: npm run build

7.4 PR標籤條件

jobs:
  deploy-preview:
    runs-on: ubuntu-latest

    # 僅在標籤為'deploy'的PR執行
    if: |
      github.event_name == 'pull_request' &&
      contains(github.event.pull_request.labels.*.name, 'deploy')

    steps:
      - run: echo "Deploying preview..."

第八步：自定義Action

8.1 JavaScript Action

action.yml：

name: 'Deploy Notification'
description: 'Send deployment notification to Slack'
author: 'Your Name'

inputs:
  webhook-url:
    description: 'Slack webhook URL'
    required: true
  status:
    description: 'Deployment status (success/failure)'
    required: true
    default: 'success'
  environment:
    description: 'Deployment environment'
    required: true
  version:
    description: 'Deployed version'
    required: false
    default: ${{ github.sha }}

outputs:
  message-id:
    description: 'The timestamp of the sent message'

runs:
  using: 'node20'
  main: 'dist/index.js'

branding:
  icon: 'send'
  color: 'blue'

index.js：

const core = require('@actions/core');
const github = require('@actions/github');

async function run() {
  try {
    const webhookUrl = core.getInput('webhook-url');
    const status = core.getInput('status');
    const environment = core.getInput('environment');
    const version = core.getInput('version');

    const { context } = github;

    const color = status === 'success' ? 'good' : 'danger';
    const emoji = status === 'success' ? '✅' : '❌';

    const message = {
      text: `${emoji} Deployment ${status} to ${environment}`,
      attachments: [{
        color,
        fields: [
          { title: 'Environment', value: environment, short: true },
          { title: 'Version', value: version.substring(0, 7), short: true },
          { title: 'Repository', value: context.payload.repository.full_name, short: true },
          { title: 'Triggered by', value: context.actor, short: true },
        ],
        footer: `GitHub Actions • ${context.workflow}`,
        ts: Date.now()
      }]
    };

    const response = await fetch(webhookUrl, {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify(message)
    });

    if (!response.ok) {
      throw new Error(`HTTP error! status: ${response.status}`);
    }

    core.setOutput('message-id', Date.now().toString());

  } catch (error) {
    core.setFailed(error.message);
  }
}

run();

8.2 Composite Action

.github/actions/setup/action.yml：

name: 'Setup Environment'
description: 'Setup Node.js and install dependencies'
author: 'Your Name'

inputs:
  node-version:
    description: 'Node.js version'
    required: false
    default: '20'

  install-command:
    description: 'Package manager install command'
    required: false
    default: 'npm ci'

  cache:
    description: 'Package manager for caching'
    required: false
    default: 'npm'

runs:
  using: 'composite'
  steps:
    - name: 設置Node.js ${{ inputs.node-version }}
      uses: actions/setup-node@v4
      with:
        node-version: ${{ inputs.node-version }}
        cache: ${{ inputs.cache }}

    - name: 安裝依賴
      shell: bash
      run: ${{ inputs.install-command }}

    - name: 顯示版本信息
      shell: bash
      run: |
        echo "Node: $(node -v)"
        echo "NPM: $(npm -v)"

使用示例：

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4

      - name: 設置環境
        uses: ./.github/actions/setup
        with:
          node-version: '20'

      - run: npm run build

高級技巧

工作流復用

.github/workflows/reusable-deploy.yml：

name: Reusable Deploy

on:
  workflow_call:
    inputs:
      environment:
        description: 'Deployment environment'
        required: true
        type: string
      image-tag:
        description: 'Docker image tag'
        required: true
        type: string

    secrets:
      deploy-key:
        description: 'SSH private key for deployment'
        required: true
      deploy-host:
        description: 'Deployment server host'
        required: true

jobs:
  deploy:
    runs-on: ubuntu-latest

    environment:
      name: ${{ inputs.environment }}

    steps:
      - name: 部署
        uses: appleboy/ssh-action@v1
        with:
          host: ${{ secrets.deploy-host }}
          username: deploy
          key: ${{ secrets.deploy-key }}
          script: |
            docker pull myapp:${{ inputs.image-tag }}
            docker compose up -d

調用復用工作流：

jobs:
  deploy-staging:
    uses: ./.github/workflows/reusable-deploy.yml
    with:
      environment: staging
      image-tag: ${{ github.sha }}
    secrets:
      deploy-key: ${{ secrets.STAGING_DEPLOY_KEY }}
      deploy-host: ${{ secrets.STAGING_HOST }}

  deploy-production:
    uses: ./.github/workflows/reusable-deploy.yml
    with:
      environment: production
      image-tag: ${{ github.sha }}
    secrets:
      deploy-key: ${{ secrets.PRODUCTION_DEPLOY_KEY }}
      deploy-host: ${{ secrets.PRODUCTION_HOST }}

常見問題解決

Q1: 權限不足

症狀：Error: Permission denied

jobs:
  build:
    runs-on: ubuntu-latest

    # 添加權限聲明
    permissions:
      contents: read      # 讀取代碼
      packages: write     # 推送鏡像
      issues: write       # 創建Issue評論
      pull-requests: write # PR評論

Q2: 緩存不生效

解決方案：

- name: 清除舊緩存
  if: github.event_name == 'workflow_dispatch'
  run: |
    gh cache delete --all || true
  env:
    GH_TOKEN: ${{ secrets.GITHUB_TOKEN }}

Q3: 服務容器連接失敗

jobs:
  test:
    runs-on: ubuntu-latest

    services:
      postgres:
        image: postgres:15
        env:
          POSTGRES_PASSWORD: testpass
        ports:
          - 5432:5432
        options: >-
          --health-cmd pg_isready
          --health-interval 10s
          --health-timeout 5s
          --health-retries 5

    steps:
      - name: 等待服務就緒
        run: |
          until pg_isready -h localhost -p 5432; do
            echo "Waiting for postgres..."
            sleep 2
          done

最佳實踐

1. 最小權限原則

jobs:
  build:
    runs-on: ubuntu-latest

    permissions:
      contents: read      # 僅讀取代碼
      packages: write     # 僅推送鏡像

2. 使用Pinned版本

# ✅ 正確：使用版本號
- uses: actions/checkout@v4
- uses: actions/setup-node@v4.0.0

# ❌ 錯誤：使用分支名（不穩定）
- uses: actions/checkout@main

3. 失敗通知

jobs:
  deploy:
    runs-on: ubuntu-latest

    steps:
      - name: 部署
        id: deploy
        run: npm run deploy

      - name: 成功通知
        if: success()
        uses: slackapi/slack-github-action@v1
        with:
          payload: |
            {"text": "✅ 部署成功"}

      - name: 失敗通知
        if: failure()
        uses: slackapi/slack-github-action@v1
        with:
          payload: |
            {"text": "❌ 部署失敗，請檢查日誌"}

總結

GitHub Actions核心要點：

概念	說明
Workflow	自動化流程，YAML定義
Event	觸發條件（push/PR/定時）
Job	作業單元，可並行或串行
Step	具體步驟，執行命令或Action
Action	可復用單元，Marketplace或自定義

關鍵技能：

✅ 編寫基礎CI工作流
✅ 矩陣構建多版本測試
✅ Docker鏡像構建與部署
✅ Secrets安全管理
✅ 緩存優化加速構建
✅ 自定義Action封裝邏輯
✅ 工作流復用減少重複
